The 8254 Solution

The 8254 increments its on-chip counters using pulses. It can be any pulse (0 to +5V transition). For example, you can add a SPST switch to the 8254 and the counter will increment by one for every toggle.

Motor encoder disks also generate pulses and can be used to increment the 8254's counters. Used in this manner, the 8254 can count the number of motor rotations. You can also combine counters to make a single 32 or 48-bit counter which may be useful in quadrature applications.

The 8254 is also a timer. This is because you can increment the counter with an oscillator. Thus if you use a 1.0 MHz oscillator, the counter would increment every 1 microsecond. By reading the counter's value at any instant, you can determine how much time has passed. For this reason, the 8254 is often called a timer chip, but technically, it is a counter chip.

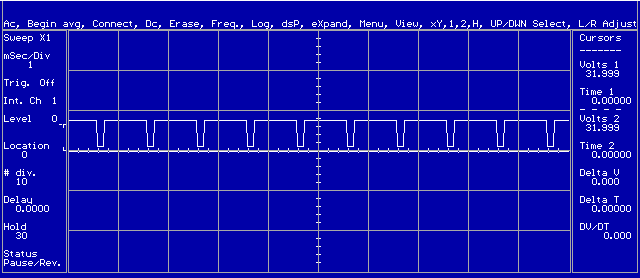

Lastly, each counter has a gate which allows you to instantly start or stop counting. The figure below shows a pulse-width-modulated (PWM) signal captured by an oscilloscope using two of the 8254's three counters. You can easily program any duty cycle you want. PWM is a commonly used for controlling motor speeds.

This tutorial is broken down into the following sections:

• Parts List with Potential Vendor Source
• Theory of Operation
• Construction
• Programming
• Final Words

  Parts List and Potential Vendor Source

  You can breadboard your 8254 card with parts that are widely available. US-based vendors include Jameco, Digikey, JDR and Radio Shack. Below is the 8254 card's parts list with part numbers, vendor and prices (in 1999). Note: Boondog has no association with these vendors.

  TABLE 1: 8254 Timer/Counter Card

  PART DESCRIPTION	VENDOR	PART	PRICE EA (1999)	QTY	NOTES
  8254 CMOS 10 MHZ TIMER CHIP	JAMECO	52409	5.95	1
  24 PIN WIREWRAP SOCKET	JAMECO	75416	1.25	1
  1.0 MHZ OSCILLATOR	JAMECO	27861	3.75	1	SEE BELOW
  34-PIN IDC WIREWRAP HEADER	JDR	IDH34W	3.59	2	SEE BELOW
  34-PIN IDC SOCKET	JAMECO	32643	0.45	2
  34-PIN RIBBON CABLE 25 FEET	JAMECO	37840	10.50	1	MIN. 25' ORDER
  2x8 HEADER PINS	JAMECO	109567	0.35	2	SEE BELOW
  1x36 HEADER PINS	JAMECO	68339	0.49	1	SEE BELOW
  JUMPER BLOCK	JAMECO	22023	0.19	2
  74HC393 4-BIT RIPPLE COUNTER	JAMECO	45874	0.59	1
  74LS09 AND-GATE	JAMECO	46391	0.25	1
  14-PIN WIREWRAP SOCKET	JAMECO	37217	0.75	2
  74HC138 3-8 DECODER	JAMECO	45330	0.45	2
  16-PIN WIREWRAP SOCKET	JAMECO	37436	0.95	2
  74HC373 LATCH	JAMECO	45831	0.59	1
  20-PIN WIREWRAP SOCKET	JAMECO	75379	1.15	1
  PC BUS PROTOTYPING CARD	JAMECO	21531	17.95	1
  0.1 uF CAPS	JAMECO	15270	1.00	4	1.00 FOR 10

  11 lines from the PC's ISA slot: the three clock, gate and out lines, the +5 V and GND lines. However, the schematics uses the 34-pin sockets and ribbon cable for potential expandability. For instance, you might wish to draw out more lines from the the ISA bus in the future (e.g. the PC's interrupt lines, address, data and -5, -12, +12 volt lines).

  Lastly, this particular 8254 chip is rated for 10 MHz. This gives you a delays as short as 0.1 microsecond. The schematic however uses a 1.0 MHz oscillator for 1 microsecond resolutions but you can use any oscillator up to 10 MHz that suits your own needs.

  Theory of Operation

  Preamble

  The 8254 card plugs into an ISA slot on your PC's motherboard just like a sound or internal modem card. Removing your PC's cover (Figure 1), reveals the ISA slots (Figure 2).



  PC interfacing through the ISA slot has many advantages over the parallel or serial interfacing. Firs, ISA slots directly connect your card's circuit to your PC's processor and hence data is quickly transferred. Second, the data lines are bidirectional, which means you can easily read or write 8-bit (one byte) data to and from your ISA-circuit. Third, the ISA-slots bring out many of the PC's processors pinouts such as interrupts, address, and data lines. Fourth, the ISA-slot also has a +5 V supply line so you don't need an extra power supply to run your card's TTL chips.

  The 8-bit ISA slot is 62-pin edge connector and has the pinouts shown in the figure (left). There are 31 pins on both the component and solder sides (Figures 3 and 4).












  The 8254 chip

  The 8254 data sheet gives all the details of this very flexible counter. This very popular chip has several versions (namely the 8253, 82C53, 8254 and 82C54) in NMOS, CMOS and maximum driving frequencies. They are all TTL compatiable and the tutorial uses the generic term 8254 to refer to all of them. All versions have the same pinouts and functions.
  This 24-pin chip (left) has 3 distinct blocks. The first consists of the counter output (OUT0, OUT1, OUT2), enabling gate (GATE1, GATE2, GATE3) and input (CLK0, CLK1, CLK2) pins. You will wire up your peripherals (like motors and switches) to these pins.

  The second block is the eight data lines D0-D7 which your computer's processor (via the ISA slot) uses to transfer (reading and writing) data to and from the 8254.

  The third block is the chip select (/CS), chip reading and writing (/WR and /RD) and programming mode select lines (A0 and A1). Your computer's processor uses these lines to program the 8254 when reading or writing counter values.

  The 8254 is Programmable...

  This is the real power and flexibility behind the 8254. Because the 8254 was meant to be a one-chip solution, Intel designed it with 6 programmable modes, by identifying the most common timing/counting needs. The 6 modes are described in detail in the 8254 data sheet. They are
  • Mode 0: Interrupt on terminal count
  • Mode 1: Hardware retriggable one-shot
  • Mode 2: Rate generator
  • Mode 3: Square wave mode
  • Mode 4: Software triggered mode
  • Mode 5: Hardware triggered strobe

  This tutorial will demonstrate how to program the 8254 in Mode 3. The other modes are equally easy to implement. Mode 0 is commonly used to count pulses (0 to +5 V transition). like switch toggles or motor encoder disk rotations. Mode 1 is used to generate a periodic signal that goes from high (+5 V) to low (GND) at fixed time intervals. Mode 3 generates square waves at user-desired frequencies.

  Construction

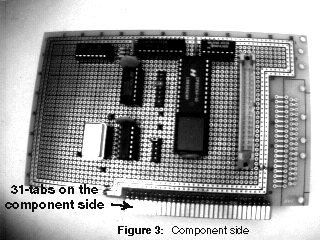

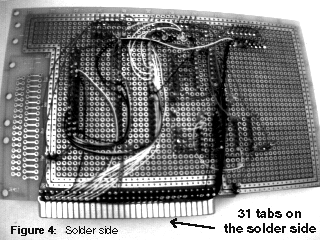

  Part placement is not critical for this circuit and can be wirewrapped and/or soldered in an afternoon or two.

  Schematic

  Status: edited schematic introduced 05/31/00


  8254sch3.pdf 8254sch3.pdf is a clearer Acrobat file of the same schematic. You will need Adobe's free Acrobat reader to view it.

  NB: 05/31/00 8254Schematic.gif and 8254Schematic.pdf were replaced with the 8254sch3.gif and 8254sch.pdf shown above. These are corrected diagrams and address readers' questions and concerns.

  One often confusing point with ISA-related circuits is the use of the prefix "A". As mentioned before, an ISA card has a component and a solder side, often called "A" and "B" respectively. There are 62 edge tabs: 31 on the component side (A1-to-A31) and 31 on the solder side (B1-to-B31). However, address lines often use the prefix "A" too. On the PC there are 20 address lines (A0-to-A19).

  To avoid this prefix confusion, this tutorial uses the lower case "a" to refer to the component side's 31 edge tabs. For example a11 is the AEN pin. "b" refers to the solder side's 31 edge tabs. For example b13 identifies the /WR pin.

  Construction Highlights

  Address Decoding

  Each ISA card in your computer must have a unique address. If two or more cards (e.g. your sound card and this 8254 card) have the same address (called address conflict), your PC cannot distinguish between the two.

  One of the two 74HC138 chips in the schematic works with an 8-position jumper to assign a unique address to your 8254 card. Figure 5 below shows the jumper block in one of the 8-positions on the header.



  You can choose one of the following 8 addresses:

  • Position 1: 200H (512D)
  • Position 2: 220H (544D)
  • Position 3: 240H (576D)
  • Position 4: 260H (608D)
  • Position 5: 280H (640D)
  • Position 6: 2A0H (672D)
  • Position 7: 2C0H (704D)
  • Position 8: 2E0H (736D)

  Since Figure 5 shows the block in position 4 (from the top) the 8254 card's address is 260H (or 608D). The suffixes "H" and "D" mean hexadecimal and decimal respectively. Later, in the programming section, you will use this address to program your 8254 card.

  The above eight addresses are not typically used by sound, modem and CD-ROM cards. If by hapchance your 8254 gives you unexpected results, you might have an address conflict. This is easily resolved by choosing a different jumper position.

  The 1.0 MHz Oscillator

  To generate a timed wave (such as square wave or periodic pulse), the 8254's three CLK inputs (pins 9, 15 and 18) need to be driven by a known "ground truth" pulse. This is what the oscillator (see Figure 6) does.


  This 4-pin silver rectangular shaped part generates square waves at its rated frequency. The schematic uses a 1.0 MHz crystal oscillator. Very often commercial 8254 cards use the ISA's OSC (pin b30 on the ISA slot) pinout rather than use an oscillator. This is a bad design for several reasons.

  First, oscillators gives you predictable results on any PC. OSC is the PC's native oscillator and depending on your PC, (PC, XT, AT, 286 etc) can be 2, 4, 8, 12 MHz and higher. The 1.0 MHz oscillator is only $3.75 which is a cheap price to pay to make your 8254 board work predictably, independent of PC-model.

  Second, commercial boards that do have an oscillator do not use a socket. Again, this forces you to use whatever oscillator the manufacturer decides and is restrictive. By using a socket, you can easily replace the 1.0 MHz oscillator with whichever one that better suits your needs (up to 10 MHz).

  The 74HC393: Configure different driving frequencies!

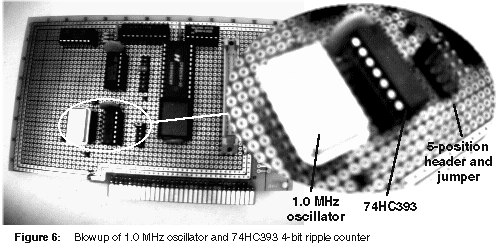

  The 74HC393 is the third reason to use a separate oscillator. The 74HC393 is a 4-bit ripple counter. Given a fixed frequency input you get 4 frequency outputs, namely, the input divided by 2, 4, 8 and 16. For example using a 1.0 MHz oscillator, the 74HC393 provides you with 500, 250, 125 and 62.5 kHz square waves. The 5-position jumper in Figure 6 is used to select which frequency you want to drive your 8254 with. These four extra frequencies give you added flexibility so you configure and customize your 8254 card with.

  34-Pin Cable, IDC connectors

  IDC connectors are more convenient than DB-style ones (e.g. DB-9 or DB-25 traditional seen on serial and parallel ports). The IDC uses the same standard 0.1 inch hole-to-hole spacing found on breadboards. DB-connectors do not fit into breadboards, so prototyping with them is difficult. You use a IDC-crimp tool or vise to attach the connector to the ribbon cable.


  Terminal Expansion Board

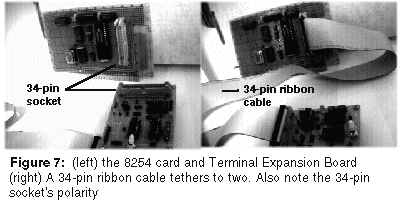

  In addition to the 8254 card, you need to construct a terminal expansion board. This board is where you will eventually wire up your peripherals to. The 34-pin cable tethers (Figure 7) the card and board. Figure 8 is a photo of a terminal expansion board made from a regular breadboard. The 34-pin cable attaches to the 34-pin socket on this terminal expansion noard. The male stub on the connector fits into the socket's female notch. Figure 8 also shows some additional circuits. One is a JK flip-flop which was used for motor speed control. There is also a switch which was used to count toggles.

  Programming

  With 6 programmable modes, your 8254 Card can answer almost any timing or counting problem you can conceive. The 8254 data sheet provides details on how to implement each of mode. Before programming, you will need to understand some preliminaries.

  I. Preliminaries

  A. Reading and Writing of Bytes

  You can use any compiler you like (e.g. Turbo C, Quick Basic, Pascal, Visual Basic (with a DLL), Borland C, Microsoft C++). that allows allows the writing and reading of bytes to a port address. For example in QBasic you use:


      OUT(portAddress, byteValue)
      byteValue = IN(portAddress)



  OUT writes byteValue (0 to 255 decimal) to the address defined in portAddress and IN reads the value from portAddress and stores it in the variable byteValue.

  In Turbo C you use:


      outportb(portAddress, byteValue)
      byteValue = inportb(portAddress)



  to accomplish the same thing. outportb() and inportb() are defined in the conio.h header file, so you must to #include it in your Turbo C program. For this tutorial we will use Turbo C to highlight programming in DOS and easy enough to translate into other languages.

  B. The Base Address

  The Address Decoding section assigned your 8254 card with a unique address (608D). This is called the base address. Each counter also has an address:


      int baseAddress, counter0, counter1, counter2;

      baseAddress = 608; /* 8254 card's base address in decimal */

      counter0 = baseAddress;
      counter1 = baseAddress + 1;
      counter2 = baseAddress + 2;



  one then does a outportb(counter0, counterValue) to write a value to counter0 or a counterValue = inportb(counter0) to read a value from counter0 . You do the same outportb() and inportb() if you need to select counter1 and counter2.

  C. Control Register

  The 6 programmable modes mentioned before are invoked by writing a 8-bit value to the control register. This is done as follows:


      controlRegister = baseAddress + 3;
      outportb(controlRegister, controlWord);

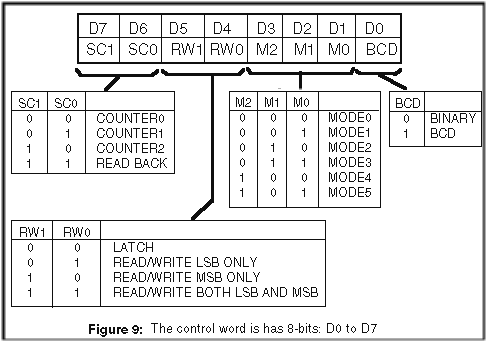

  where the variable controlWord is determined with the following chart (Figure 9)



  From Figure 9 we can see that the control word is an 8-bit binary number. There are 5 steps to calculate the proper control word number:

  Step 1: Chose one counter (SC1 and SC0)
  Step 2: Chose method to load (RW1 and RW0)
  Step 3: Chose programming mode (M2, M1 and M0)
  Step 4: Chose binary or BCD number (BCD).
  Step 5: Convert the final binary word into decimal


  Example: Suppose you want to make counter 0 a binary counter that generates square waves, and uses LSB and MSB read/write loading. What is the proper control word?

  Figure 10 shows the answer. From Step 1, SC1 and SC0 both are 0 if you want to use counter 0. Step 2 say that LSB and MSB are both loaded. For square wave generation, you use Mode 3 and Step 3 says that M2,M1,M0 = 011. Step 4 makes BCD = 0 to have a binary counter. Thus the resulting binary number is 00110110 or, 54 decimal. Thus you would load the control register with controlWord with 54:


      controlRegister = baseAddress + 3;
      outportb(controlRegister, 54); /* counter 0 is in Mode 3 */



  D. LSB and MSB
  All 3 counters are 16-bits.  A byte is 8-bits long, hence
  each timer is 2-bytes.  This means that each counter can
  have values ranging from:

       0000000000000000 (16 zeros) to 1111111111111111 (16 ones)

  in binary, or 0 to 65535 decimal.  ISA is an 8-bit
  data bus and can read or write only one byte at a time.  Thus
  to read or write a 16-bit value, you must do so one byte at a time.
  The lower and higher 8-bit numbers are called least and
  most-significant bytes (LSB, MSB) respectively. For example,
  to load counter0 with 38370 decimal, the LSB is 226 decimal, and its
  MSB is 149 decimal (Figure 11).





  The control word's RW1 and RW0 setting tells the 8254 that
  you will read or write 16-bit byte values with the LSB first
  followed by  the MSB.  In code you would do the following:


      /* load counter 0 with value 38370 for example */
      outportb(counter0, 226); /* load LSB first */
      outportb(counter0, 149); /* then load MSB */



  There might be cases where you only want to read or write
  the LSB or MSB.  You would then choose the respective RW1 and
  RW0 values from Figure 9.

  E. Counter Reading and/or Writing

  By reading the counter value you can determine how many pulses it
  has received.  Rather than counting upwardly (0,1,2..., 65535), the
  8254's counters by default, count downwardly (65535, 65534...,0).
  In many of the programming modes, the counter will wrap around
  and start at 65535 once it has reached 0.

  You can give a counter a preset value to start counting down from
  by writing this value to it.  For example in the code above,
  counter0 starts counting down from 38370.

  For timed applications, using a 1.0 MHz oscillator, each count
  takes 1 microseconds (usec).  Thus the preset value takes
  the same number of usec needed to reach 0.  Thus 38370 would
  take 38370 usec.

  You now may know see the significance of using the 74HC393.
  By changing jumper positions you can easily drive the counter
  with a different frequency.  Thus we have:
       Frequency    time/count
       1.0  MHz      1 usec
       500  KHz      2 usec
       250  KHz      4 usec
       125  KHz      8 usec
       62.5 KHz     16 usec


  II. The Code

  With the preliminaries out of the way,
  3sqwave.c . is a short Turbo C program that allows the user
  to select a counter and frequency to generate square waves.
  A useful application of this code is to drive a stepper motor.
  Many dedicated stepper motor chips (such as Allegro Microsystems
  5804) require a square wave, thus you can extend the code
  to run a stepper motor.

  The program begins by defining crystalValue
   with 1.0 MHz.  Further down,
  baseAddress is given the 8254 card address 608 decimal
  and is used to assign addresses to the counters and control register.

  Each counter is then configured in Mode 3 (square wave) as a
  binary counter with LSB and MSB loading.  This makes the control
  word 54, 118 and 182 decimal (see Figure 9).

  During program execution the user is then promped to select
  a counter (0, 1 or 2) and its gate,
  (gateNumber) is then assigned.

  The user is then asked to enter a frequency.  The appropriate
  calculations are performed to load the counter's preset value
  counterValue.  The gate can
  be toggled so that the user can stop or start the squave wave
  at any time.  Also, the user can change the squave wave
  frequency at any time during program execution.

  As you can see programming the 8254 is not very complicated.
  The 8254's other modes can be programmed similarly.


  Final Words

  This tutorial provides a solution to many timing and counting
  needs required in PC interfacing.  By building the 8254 circuit
  on an ISA card, one can have a very powerful, flexible and high
  resolution timer.

  Program mode 3 was illustrated to demonstrate the 8254 card's
  squave wave generating ability.  In the near future,
  source code for other modes will be added.  Other soon to
  come tutorials will illustrate the 8254 forL

   (Available 06/14/99) A motor speed control using pulse-width-modulation
   Counting motor revolutions
   Stepper motor application
   Running servo motors




  Let me know (email) if you have found this tutorial
  useful! Happy building and interfacing.
